1. Low resistance — low electrical resistivity (0.096 μΩ·m) makes the battery pack more powerful and saves energy.
2. Pure nickel is easy to weld — stable connection with consistent spot weld quality.
3. Good tensile strength and easy assembly — annealing condition supports trouble-free operation.

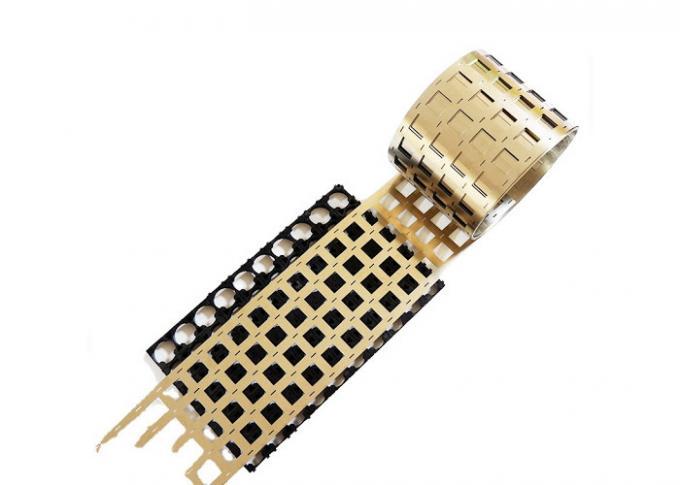

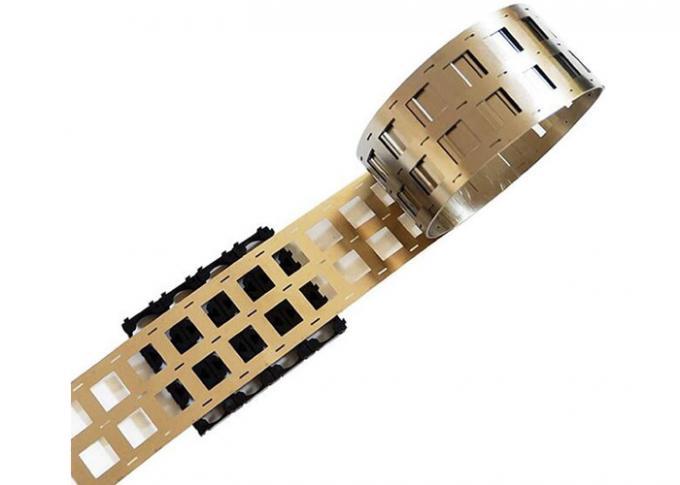

4. Shaped design — 2P/3P/4P/5P patterns save assembly work for battery pack manufacturing.
5. High electrical conductivity.
6. Anti-corrosive and low resistance in service environments.

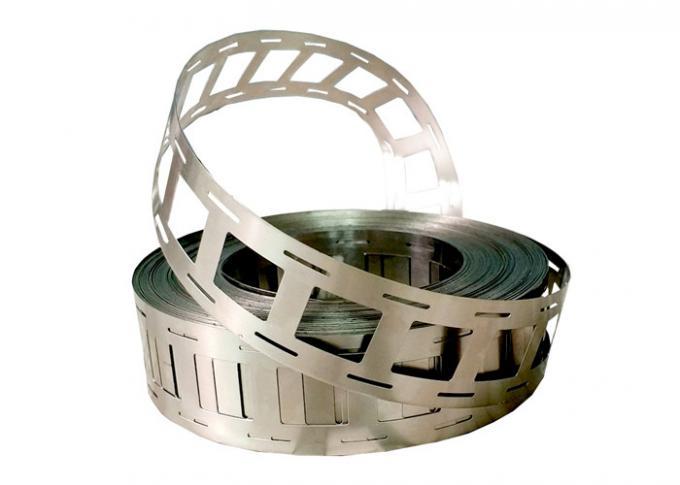

• Strip: 0.05-0.5 mm thickness * 5-200 mm width (per catalog); battery strip width series 2-15 mm

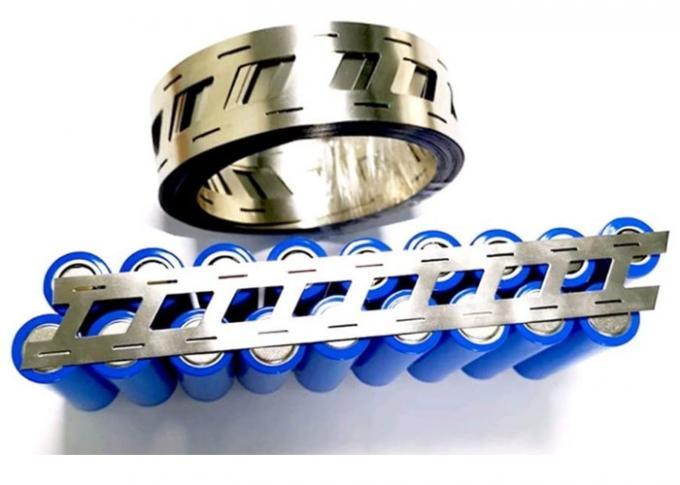

• Patterns: 2P / 3P / 4P / 5P for 18650 and 32650 battery packs
• Thickness and dimensions can be produced to customer requirements (per drawing)

• Density: 8.908 g/cm³
• Melting point: 1435-1446 °C
• Curie temperature: 358 °C
• Electrical resistivity: 0.096 μΩ·m (20 °C)
• Tensile strength: ≥462 MPa (annealed)
• Elongation: ≥35% (annealed)
• Hardness: 90-120 HB

1. Low resistance — low electrical resistivity (0.096 μΩ·m) makes the battery pack more powerful and saves energy.
2. Pure nickel is easy to weld — stable connection with consistent spot weld quality.
3. Good tensile strength and easy assembly — annealing condition supports trouble-free operation.
4. Shaped design — 2P/3P/4P/5P patterns save assembly work for battery pack manufacturing.
5. High electrical conductivity.
6. Anti-corrosive and low resistance in service environments.

• Strip: 0.05-0.5 mm thickness * 5-200 mm width (per catalog); battery strip width series 2-15 mm
• Patterns: 2P / 3P / 4P / 5P for 18650 and 32650 battery packs
• Thickness and dimensions can be produced to customer requirements (per drawing)

• Density: 8.908 g/cm³
• Melting point: 1435-1446 °C
• Curie temperature: 358 °C
• Electrical resistivity: 0.096 μΩ·m (20 °C)
• Tensile strength: ≥462 MPa (annealed)
• Elongation: ≥35% (annealed)
• Hardness: 90-120 HB

1. Manufacturing nickel-cadmium batteries
2. Nickel-hydrogen batteries
3. Lithium cells
4. Assembled battery packs
5. Industries of electric tools and special lights
6. Lithium battery pack spot welding

Which patterns can you supply? 2P/3P/4P/5P patterns for 18650, 26650 and 32650 battery packs; other pattern layouts per drawing.

What thickness and width are available? Strip 0.05-0.5 mm thickness * 5-200 mm width; battery width series 2-15 mm; custom per drawing.

Which grade should we use? Ni200 (≥99.2% Ni) is standard for battery strip; Ni201 (≥99.0% Ni, low carbon) for elevated-temperature service.

What is the MOQ? 5 kg; sample and trial quantities can be discussed per request.

What is the delivery time and documentation? 7-15 days from confirmed drawing; EN 10204 3.1 mill test certificates, batch records, ISO 9001/SGS certificates and packing list.
